The secrets behind Reinforcement Learning

Sergios Karagiannakoson2018-09-23·5 mins
Reinforcement Learning

Bots that play Dota2, AI that beat the best Go players in the world, computers that excel at Doom. What’s going on? Is there a reason why the AI community has been so busy playing games? Hint: it's Reinforcement Learning.

Let me put it that way. If you want a robot to learn how to walk what do you do? You build one, program it and release it on the streets of New York? Of course not. You build a simulation, a game, and you use that virtual space to teach it how to move around it. Zero cost, zero risks. That’s why games are so useful in research areas. But how do you teach it to walk? The answer is the topic of today’s article and is probably the most exciting field of Machine learning at the time.

You probably knew that there are two types of machine learning. Supervised and unsupervised. Well, there is a third one, called Reinforcement Learning. RL is arguably the most difficult area of ML to understand cause there are so many, many things going on at the same time. I’ll try to simplify as much as I can because it is a really astonishing area and you should definitely know about it. But let me warn you. It involves complex thinking and 100% focus to grasp it. And some math. So, take a deep breath and let’s dive in:

Markov Decision Processes

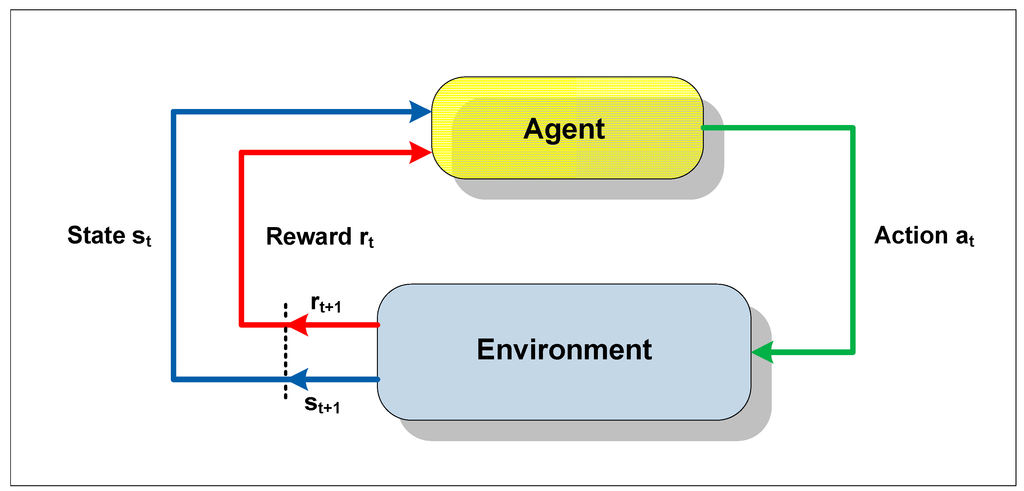

Reinforcement learning is a trial and error process where an AI (agent) performs a number of actions in an environment. Each unique moment the agent has a state and acts from this given state to a new one. This particular action may on may not has a reward. Therefore, we can say that each learning epoch (or an episode) can be represented as a sequence of states, actions, and rewards. Each state depends only on the previous states and actions and as the environment is inherently stochastic (we don’t know the state that comes next), this process satisfies the Markov property. The Markov property says that the conditional probability distribution of future states of the process depends only upon the present state, not on the sequence of events that preceded it. The whole process is referred to as a Markov Decision Process.

RL https://www.mdpi.com/

Let’s see a real example using Super Mario. In this case:

  • The agent is, of course, the beloved Mario

  • The state is the current situation (let's say the frame of our screen)

  • The actions are: left, right movement and jump

  • The environment is the virtual world of each level;

  • And the reward is whether Mario is alive or dead.

Ok, we have properly defined the problem. What’s next? We need a solution. But first, we need a way to evaluate how good the solution is?

What I am saying is that the reward on each episode it’s not enough. Imagine a Mario game where the Mario is controlled by an agent. He is receiving constantly positive rewards through the whole level by just before the final flag, he is killed by one Hammer Bro (I hate those guys). You see that each individual reward is not enough for us to win the game. We need a reward that captures the whole level. This is where the term of the discounted cumulative expected reward comes into play.

R=t=0γtrtR=\sum_{t=0}^{\infty} \gamma^{t} r_{t}

It is nothing more than the sum of all rewards discounted by a factor gamma, where gamma belongs to [0,1). The discount is essential because the rewards tend to be much more significant in the beginning than in the end. And it makes perfect sense.

The next step is to solve the problem. To do that we define that the goal of the learning task is: The agent needs to learn which action to perform from a given state that maximized the cumulative reward over time. Or to learn the Policy π: S->A. The policy is just a mapping between a state and an action.

To sum all the above, we use the following equation:

Vπ(st)rt+γrt+1+γ2rt+1i=0γirt+i\begin{aligned} V^{\pi}\left(s_{t}\right) & \equiv r_{t}+\gamma r_{t+1}+\gamma^{2} r_{t+1} \\ & \equiv \sum_{i=0}^{\infty} \gamma^{i} r_{t+i} \end{aligned}

, where V (Value) is the expected long-term reward achieved by a policy (π) from a state (s).

You still with me? If you are, let’s pause for 5 seconds cause this was a bit overwhelming:


Now that we regain our mental clarity, let recap. We have the definition of the problem as a Markov Decision Process and we have our goal to learn the best Policy or the best Value. How we proceed?

We need an algorithm (Thank you, Sherlock…)

Well, there is an abundance of developed RL algorithms over the years. Each algorithm focuses on a different thing, whether it is to maximize the value or the policy or both. Whether to use a model(e.g a neural network) to simulate the environment or not. Whether it will capture the reward on each step or the end. As you guessed, it is not very easy to categorize all those algorithms in classes, but that’s what I am about to do.


As you can see we can classify RL algorithms in two big categories: Model-based and Model-free:


These algorithms aim to learn how the environment works (its dynamics) from its observations and then plan a solution using that model. When they have a model, they use some planning method to find the best policy. They known to be data efficient, but they fail when the state space is too large. Try to build a model-based algorithm to play Go. Not gonna happen.

Dynamic programming methods are an example of model-based methods, as they require the complete knowledge of the environment, such as transition probabilities and rewards.


Model-free algorithms do not require to learn the environment and store all the combination of states and actions. The can be divided into two categories, based on the ultimate goal of the training.

Policy-based methods try to find the optimal policy, whether it’s stochastic or deterministic. Algorithms like policy gradients and REINFORCE belong in this category. Their advantages are better convergence and effectiveness on high dimensional or continuous action spaces.

Policy-based methods are essentially an optimization problem, where we find the maximum of a policy function. That’s why we also use algorithms like evolution strategies and hill climbing.

Value-based methods, on the other hand, try to find the optimal value. A big part of this category is a family of algorithms called Q-learning, which learn to optimize the Q-Value. I plan to analyze Q-learning thoroughly on a next article because it is an essential aspect of Reinforcement learning. Other algorithms involve SARSA and value iteration.

At the intersection of policy and value-based method, we find the Actor-Critic methods, where the goal is to optimize both the policy and the value function.

And now to the cool part. In the past few years, there is a new kid in town. And it was inevitable to affect and enhance all the existing methods to solve Reinforcement Learning. I am sure you guessed it. Deep Learning. And thus, we have a new term to represent all those new research ideas.

Download our free ebook on Deep Reinforcement Learning

We combined all of Reinforcement Learning articles into a single pdf. So if you don't have time to read the whole article or you want a pdf version to read offline, click the button below

* We're committed to your privacy. AI Summer uses the information you provide to send you our newsletter and contact you about our products. You may unsubscribe from these communications at any time. For more information, check out our Privacy Policy.

Deep Reinforcement Learning


Deep neural networks have been used to model the dynamics of the environment(mode-based), to enhance policy searches (policy-based) and to approximate the Value function (value-based). Research on the last one (which is my favorite) has produced a model called Deep Q Network, which is responsible ,along with its many improvements, for some of the most astonishing breakthroughs around the area (take Atari for example). And to excite you, even more, we don’t just use simple Neural Networks but Convolutional, Recurrent and many else as well.

Ok, I think that’s enough for the first contact with Reinforcement Learning. I just wanted to give you the basis behind the whole idea and present you an overview of all the important techniques implemented over the years. But also, to give you a hint of what’s next for the field. You want to explore more? Well first that's awesome. Second you can do so using this amazing set of courses by Coursera

Until my next article, stay tuned.

For the next article in the Reinforcement Learning Journey, click here.
